MINARDI

 1997 Car Specifications

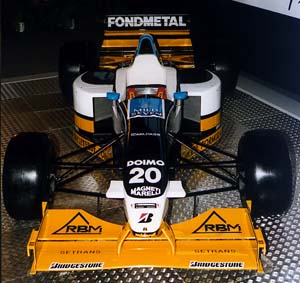

MINARDI M197 TECHNICAL SPECIFICATIONS

Car M197

Chassis Carbon fibre monocoque

Bodywork Carbon

Suspension Inboard spring via rocker and pushrod (front & rear)

Dampers Penske

Brakes Brembo

Brake Discs Carbon Industrie

Cooling System 2 water radiators 1 oil radiator

Gearbox 6 speed longitudinal Minardi Xtrac gearbox

+ Minardi electrohydraulic system

Race wheels Fondmetal 11 x 13 front

13.7 x 13 rear

Tyres Bridgstone

Seat Belts TRW Sabelt



DIMENSIONS

Wheelbase 2900 mm

Track 1680 mm front

1620 mm rear

Height 950 mm (from reference plane)

Length 4405 mm

Width 2000 mm

Weight 600 Kg

ENGINE Hart 830 AV7

Injection Magneti Marelli electronic

Electrical system Magneti Marelli

Fuel tank ATL

Fuel Minardi
