1996 was the season that was meant to mark Ferrari's resurgance in Formula One. In part it was true, but some of that new found speed was most certainly down to Michael Schumacher. It would have been better still if the car had managed to stay together a little longer at some races.

1997 will require a car that is not only fast, but also reliable. If Ferrari fail then it's public knowledge that heads will roll.

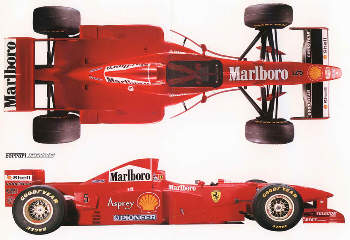

Ferrari F310B Technical Specifications

Chassis : Carbon fibre and honeycomb composite.

Front Suspension : Independent double wishbone with push-rod activated torsion spring.

Rear Suspension : Independent double wishbone with push-rod activated torsion spring.

Brakes : Ventilated carbon fibre all round.

Transmission : Semi-automatic, sequentially shifted, transverse mounted 7-speed with titanium case. Electronically controlled.

Tyres : 300/50R13 (front) 380/45R13 (rear)

Tyre Pressure : 22-24 psi (front) 19 psi (rear)



Main Dimensions :

Wheelbase : 2935 mm

Front track : 1690 mm

Rear track : 1605 mm

Length : 4358 mm

Height : 968 mm

Width : 1995 mm

Weight : 600 kg with oil, water & driver

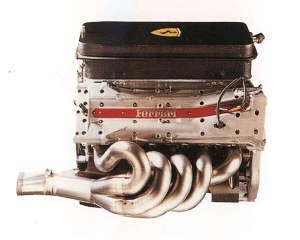

Ferrari 3000 046/2 V10 Engine

Description : 75 deg. V10

Displacement : 2,998.1 cc

Length : 623mm

Width : 542mm

Height : 395mm to cylinder heads

Fuel injection : Magnetti Marelli Digital electronic engine management

Ignition system : Magnetti Marelli static ignition

Power : >650 bhp
